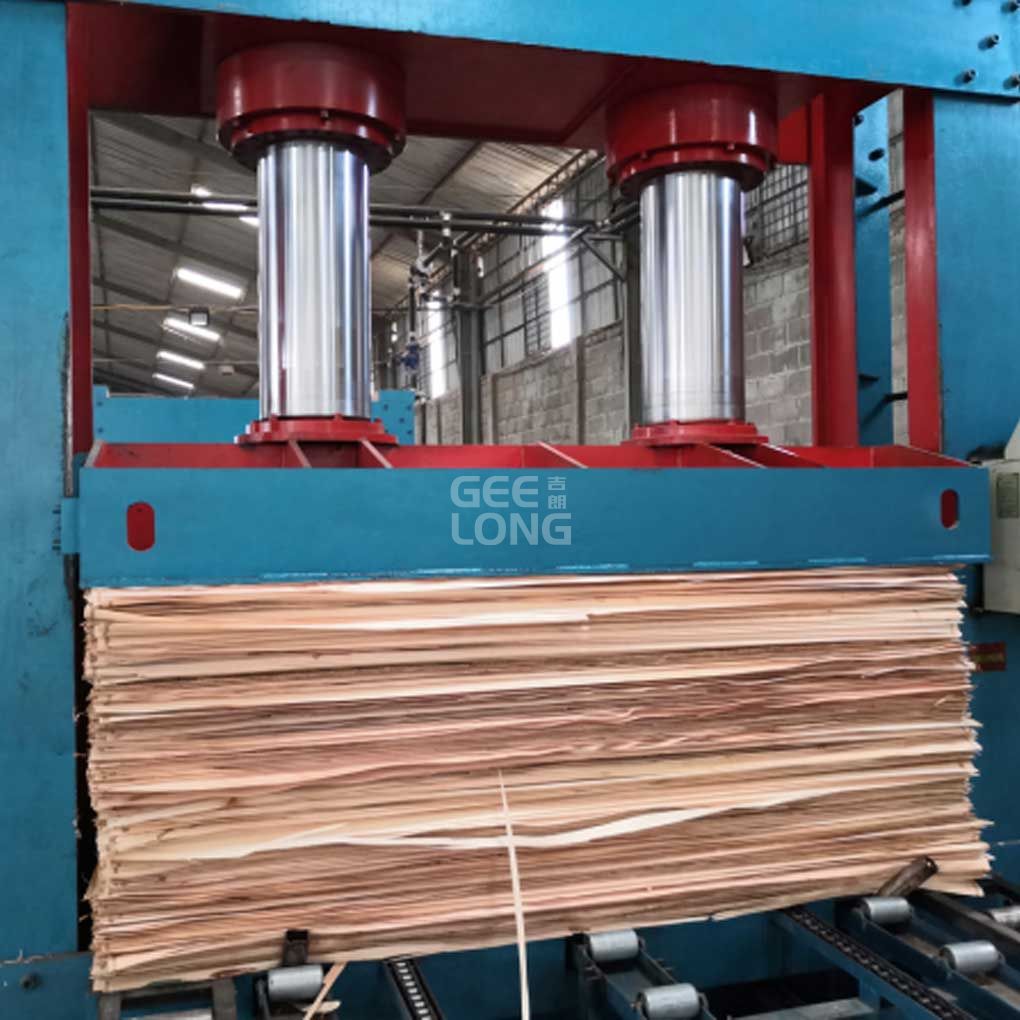

Plywood Cold Press Geelong Brand

Plywood cold press machine, is one important pressing machine before hot pressing section, why we called this machine as cold press, bec this machine works without heating. After veneer paving, then next process will be cold pressing, cold pressing can make mat-plywood inside glue cured in some degree, after this process, the mat-plywood will be more easy to loaded into multi layer plywood hot press machine, also can reduce the hot pressing time, our cold press machine frame can be welded type and bolts connected type, about the pressure and working stroke can be customized.

WhatsApp: +86 157 5396 3153

Technical parameters of plywood cold press:


Pressure400-600T
Board feeding directiontransverse
Layer1
Layer space1800mm
Working table size1370*2700MM
Cylinder stroke1050mm
CylinderØ320MM*2PCS
Power11KW
Overall dimension3550*1370*4200MM
Weight13000KGS
Working methodautomatic
Composite frameassembled
Upper and bottom beam900mm
Middle beam400mm
Frame thickness35mm
