4ft veneer composer is exported to Egypt

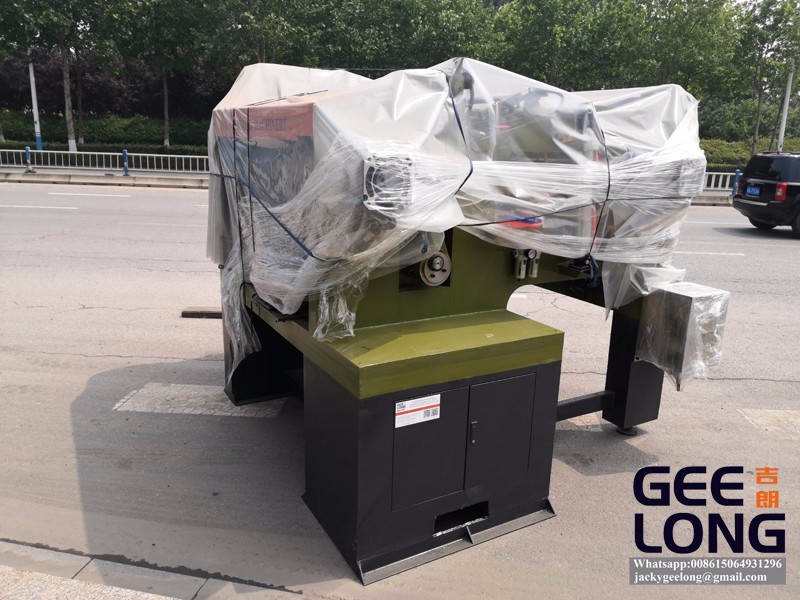

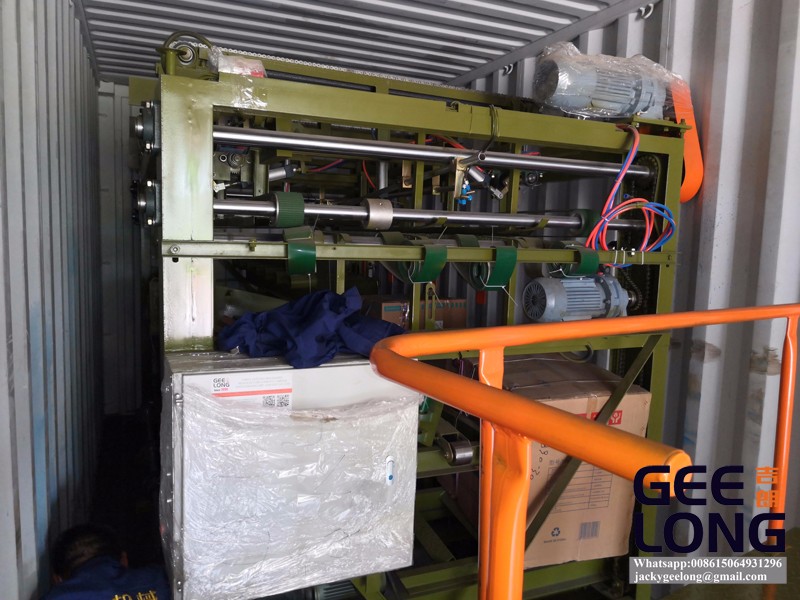

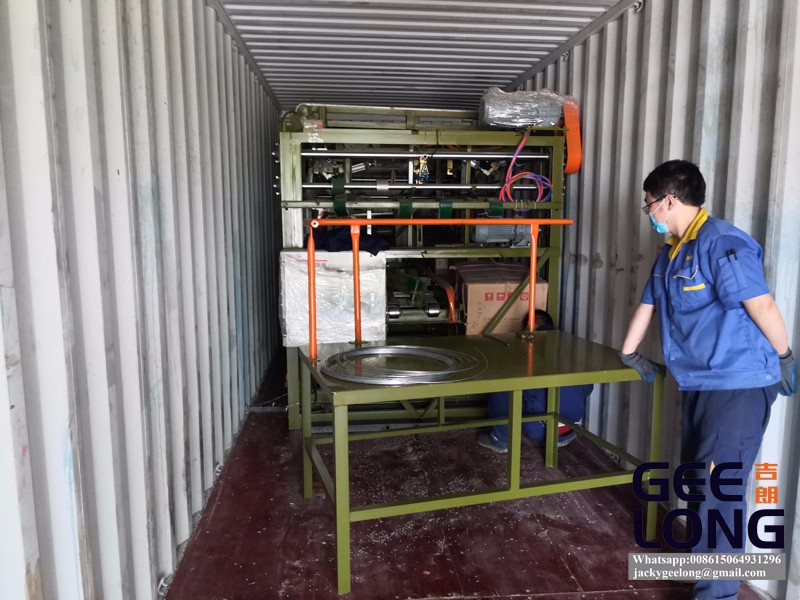

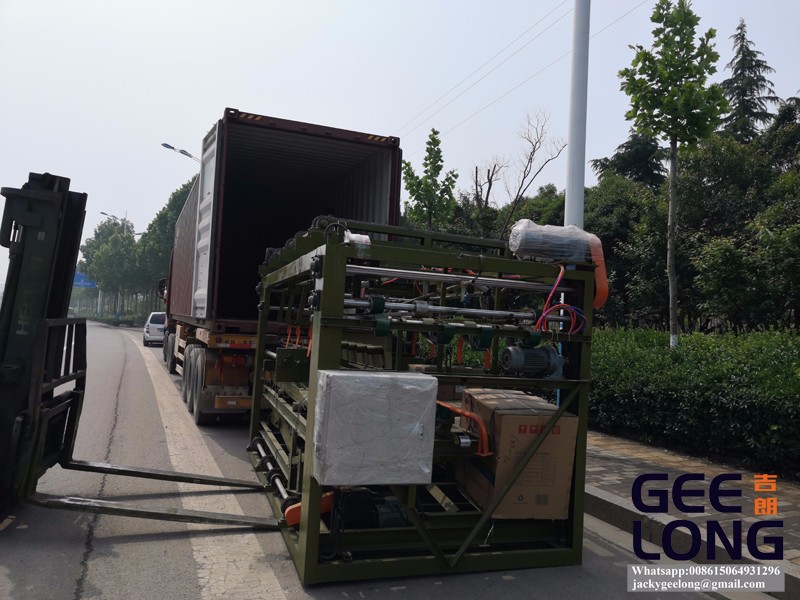

GEELONG exported one set 4ft veneer composer to Egypt.

GEELONG veneer composer uses steel plate as frame, the main frame steel thickness is 14mm.

main frame is cutted by laser.the servo motor is Siemens brand.

GEELONG is professional complete plywood machine supplier.

4ft veneer composer specifciation:

machine dimension:12000*2600*2500mm

Structure:Integral steel plate cutting

 Transmission speed:0-35m/minute adjust

Working efficiency:300pcs/h

splicing machine length:3600mm

splicing machine height:2500mm

Splicing machine width:2600mm

Collecting machine length:4000mm

Collecting machine height:2500mm

Collecting machine width:2200mm

 PLC computer module:TDATDA PLC(Tai wan)

Total weight:6500kg

Total power:15.5kw

Front driver:INVT servo motor 3.5kw(Siemens)

Inverter:China brand

Edge cutter driver:Motor+CHAIN TAILclutch(Tai wan)

Front drive reducer:Star type reducer8/1ZD(CHINA)

Rear drive reducer:Star type reducer8/1ZD(CHINA)

Rotary actuator:FESTO(Germany)

Automatic core veneer corrector:Yes

Water cooling air condition:Yes

Electric lateral platform:Yes

4*4-4*8 electric conversion:Yes

Elevator-platform:Yes

Speed control:Yes

Finished panel Counter:Yes

electrical parts：Schneider brand
