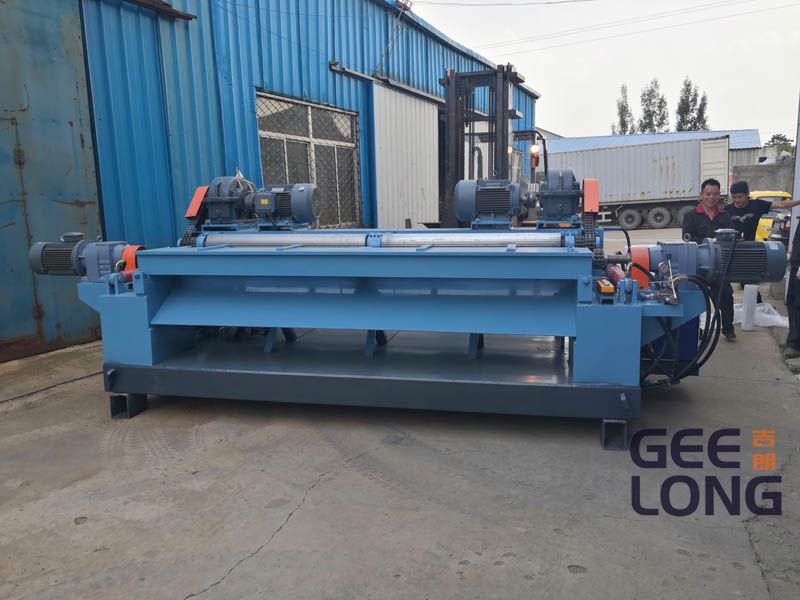

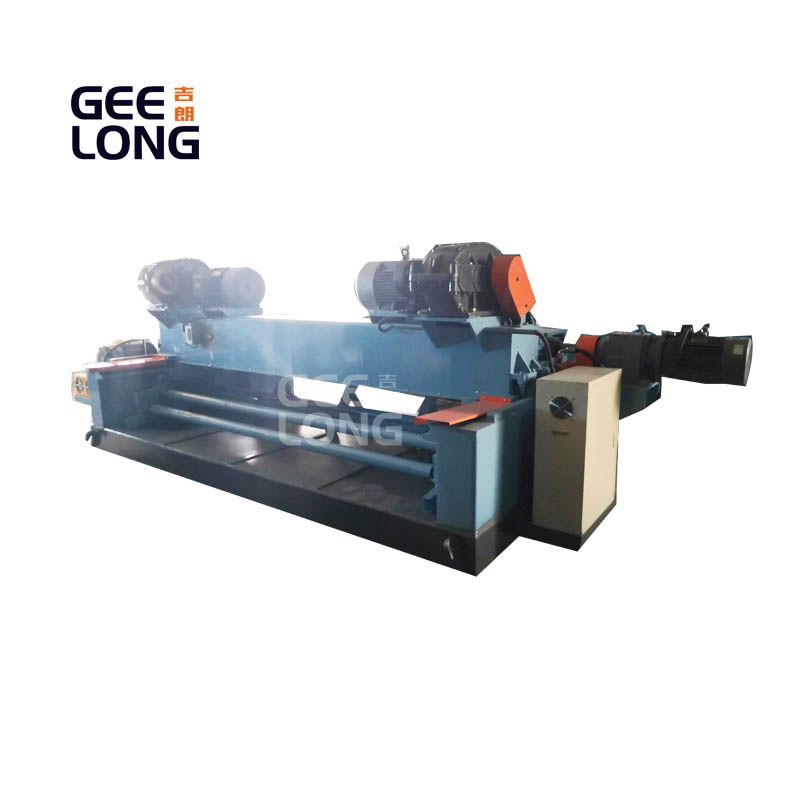

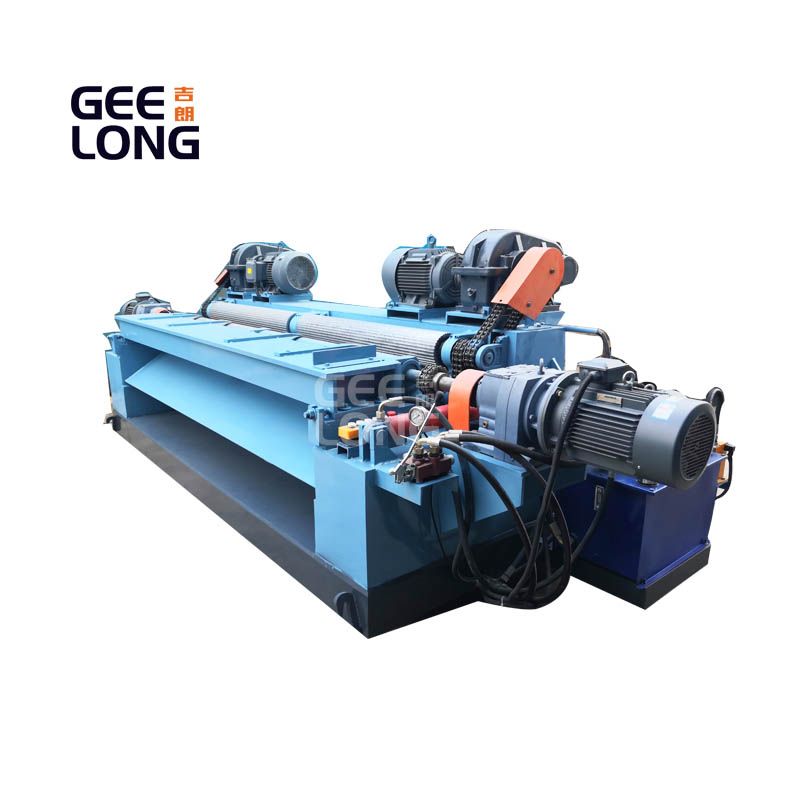

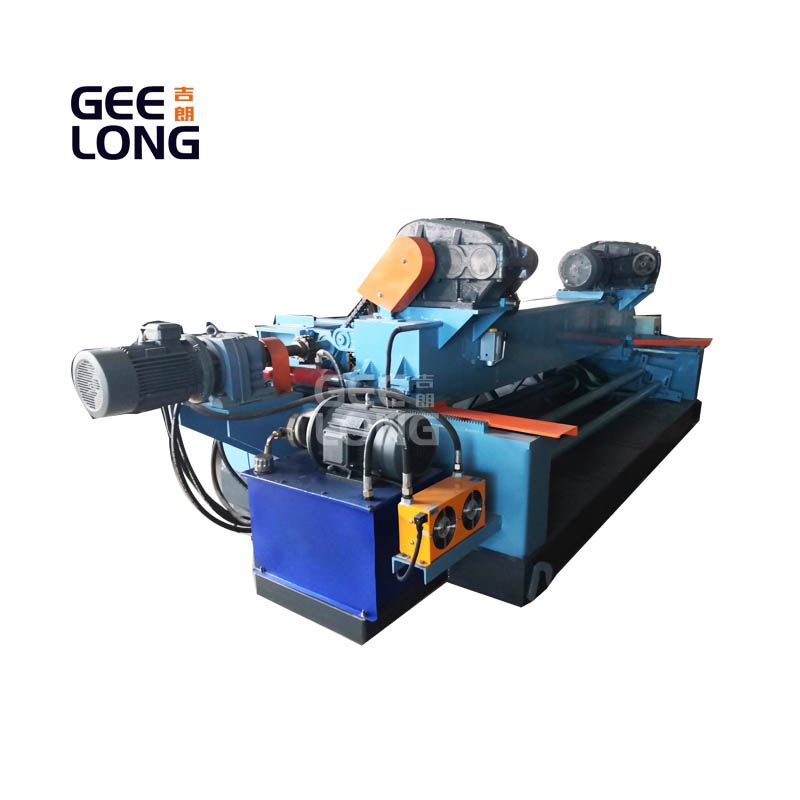

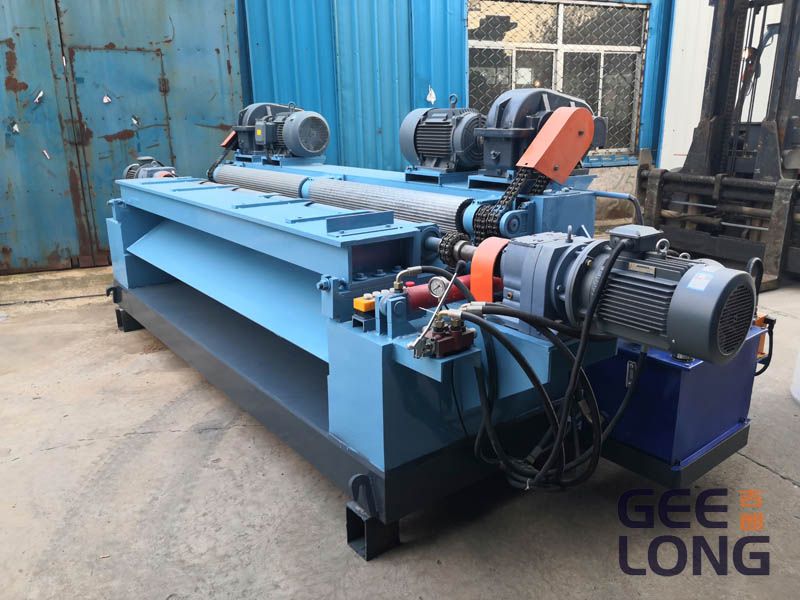

This 8ft wood log debarker machine has high efficiency, fast speed, low power consumption, simple structure, and is suitable for peeling requirements of different tree species. One wood log debarker machine can be used with two veneer rotary peeling machines.
wood log debarker machine is an important equipment for veneer production. The wood bark structure is loose and has no use value in the production of plywood. the direct Rotary cutting of the phloem of the bark is easy to block the knife gap of the veneer peeling machine and make the rotary knife blade blunt quickly, so the rotary cutting cannot operate normally; there are often debris and stones in the bark such as direct rotary cutting will damage the rotary knife, Affect the normal rotary cutting and veneer quality. Therefore, the wood segment bark must be peeled before veneer rotary cutting.
This 8ft wood log debarker machine has high efficiency, fast speed, low power consumption, simple structure, and is suitable for peeling requirements of different tree species. One wood log debarker machine can be used with two veneer rotary peeling machines.
The maximum length is 2700mm, and the maximum diameter of the wood is 500mm. The wood log debarker machine needs to be customized if wood diameter is more 500mm and length is more than 2700mm.
Model No. | GDB/4H |
Wood length | 2600mm |
Wood diameter | Φ80-Φ500mm(customized) |
Blade length | 2700mm |
Thickness of veneer peeler | 1.0-3.0mm |
Linear speed of host machine | 55m/min |

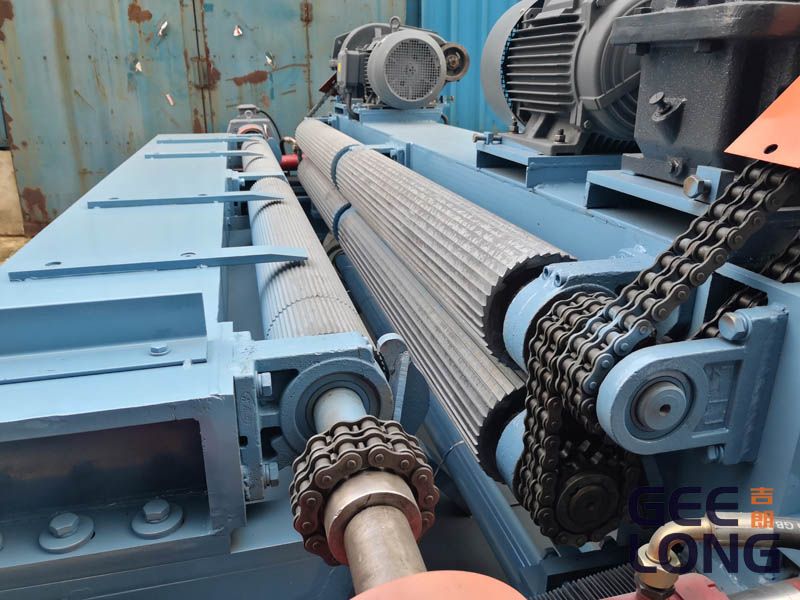

Double roller diameter | 180mm |
Single roller diameter | 150mm |
Double roller motor power | 11kw*2pcs |
Single roller motor power | 7.5kw*2pcs |

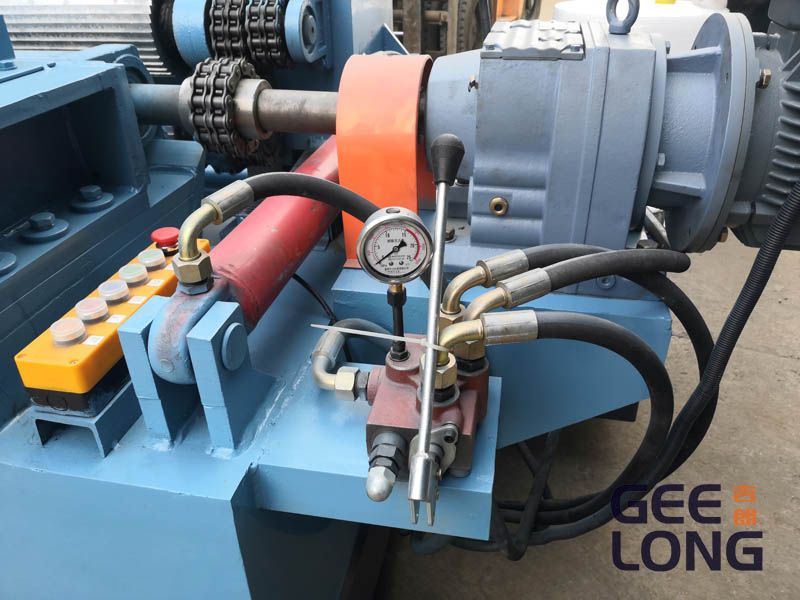

hydraulic station motor power | 7.5kw |
Total power | 44.5kw |
Total weight | 6500kg |
Machine dimension | 5500*2100*1500mm |
