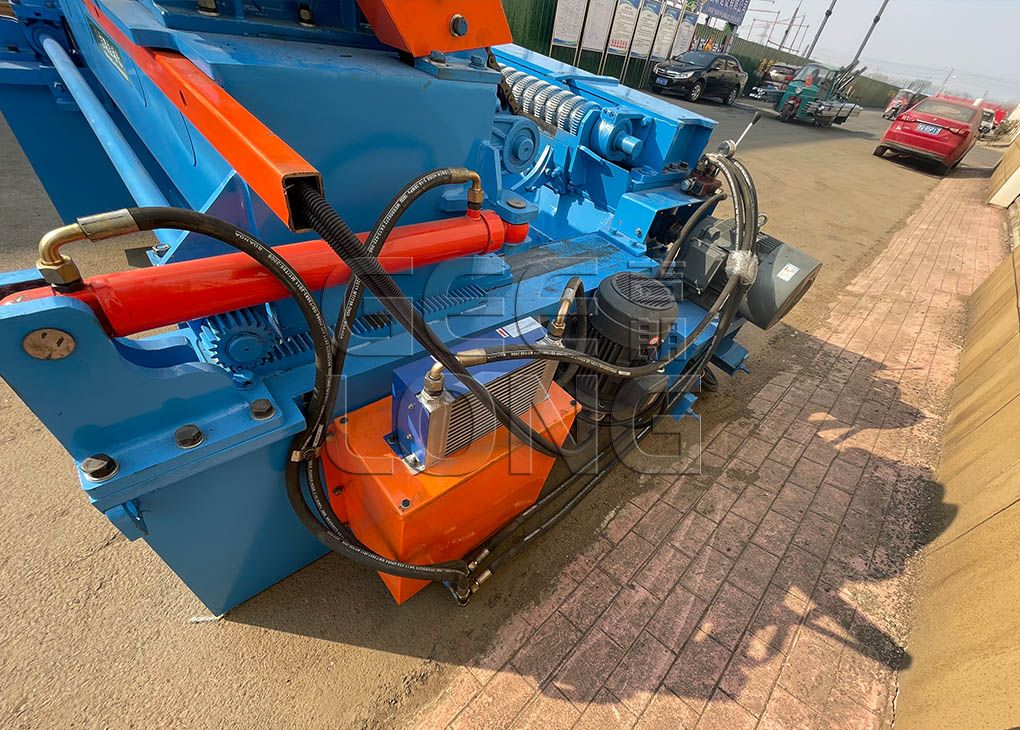

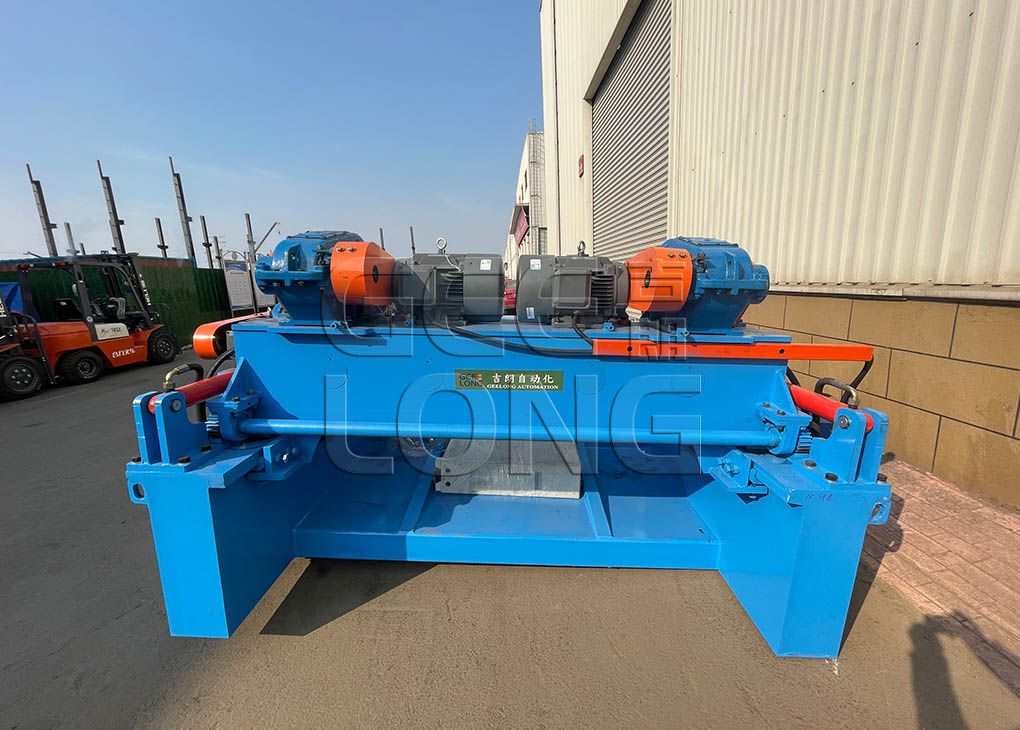

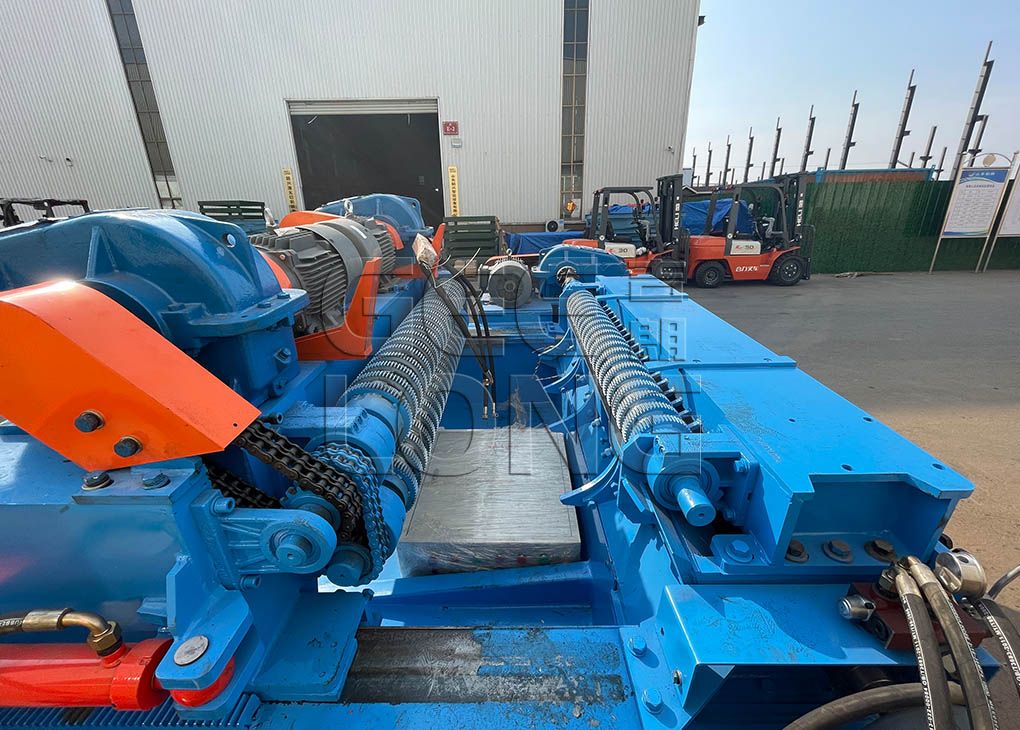

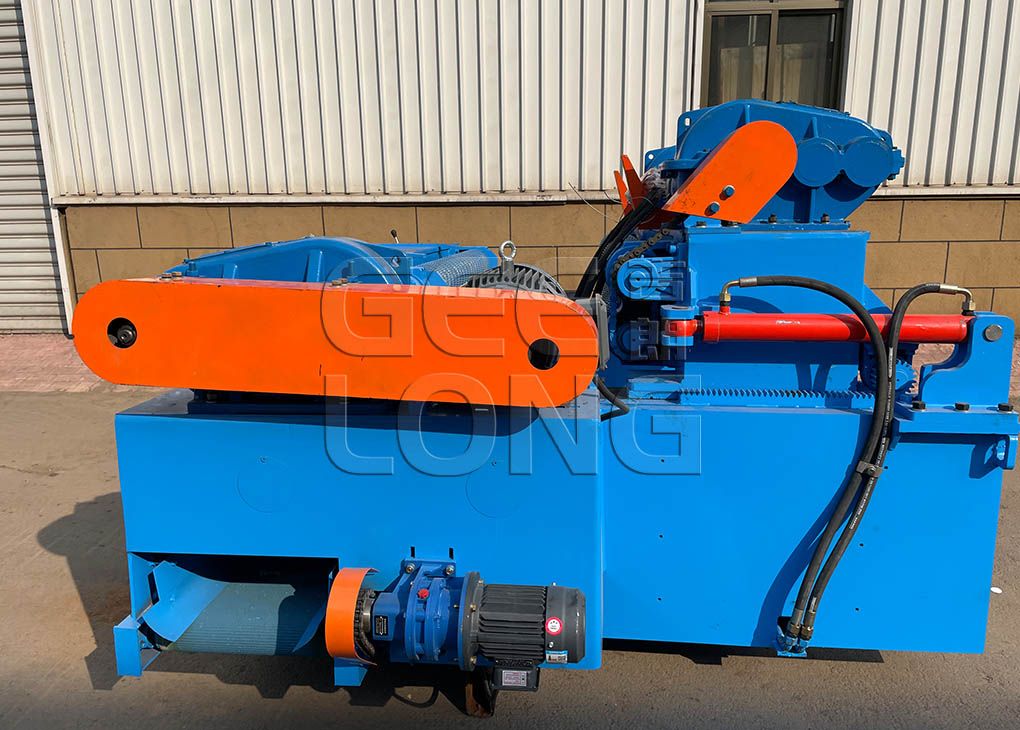

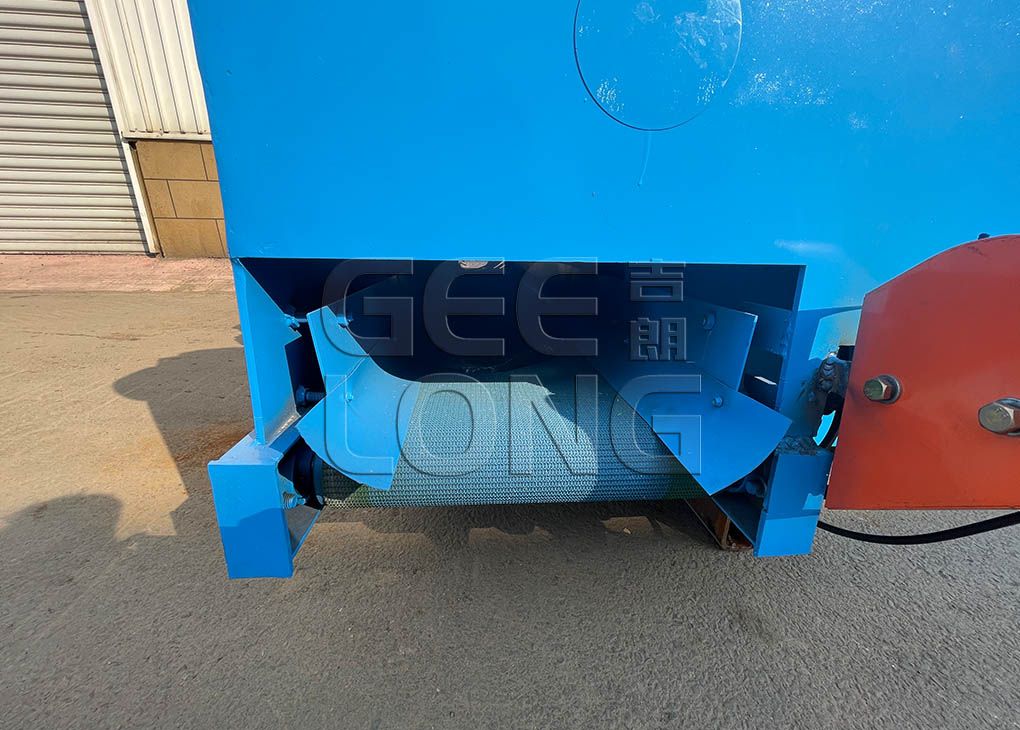

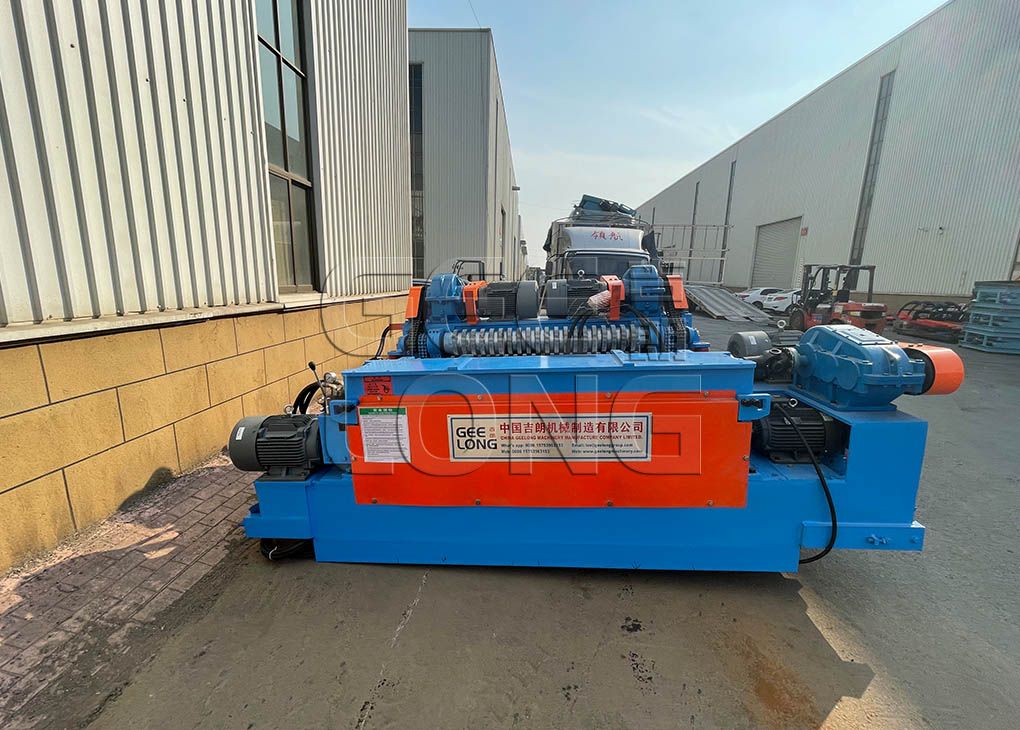

Geelong HEAVY DUTY wood log debarker machine with crushing function, model number: GDB/4HC, is one log debarker machine, we make the updating based on the model: GDB/4H, we make the machine frame, more high motor power, more high grade and strong reducer machine, debarking rollers more big diameter, and also with crushing function, if you need high grade and high quality plywood machine, welcome to inquiry geelong sales team, in geelong company, we prefer more high quality machine, but high quality machine more along with high price.
Machine name | Geelong HEAVY DUTY wood log debarker machine with crushing function |
Machine model number | GDB/4HC |
Max. wood diameter | 500mm |
Max.Wood log length | 1300mm |
Knife blade length | 1400mm |
Veneer thickness | 1.0-3.0mm |
Double roller diameter | 200mm |
Single roller diameter | 165mm |
Double roller motor power | 11kw*2pcs |
Single roller motor power | 11kw*2pcs |
Double saw blade crushing | 11KW+4KW |
Hydraulic station motor power | 5.5kw |
Total power | 64.5kw |
Voltage | 380V |
Total weight | 6000kg |
Machine dimension | 4500*1900*1450mm |
