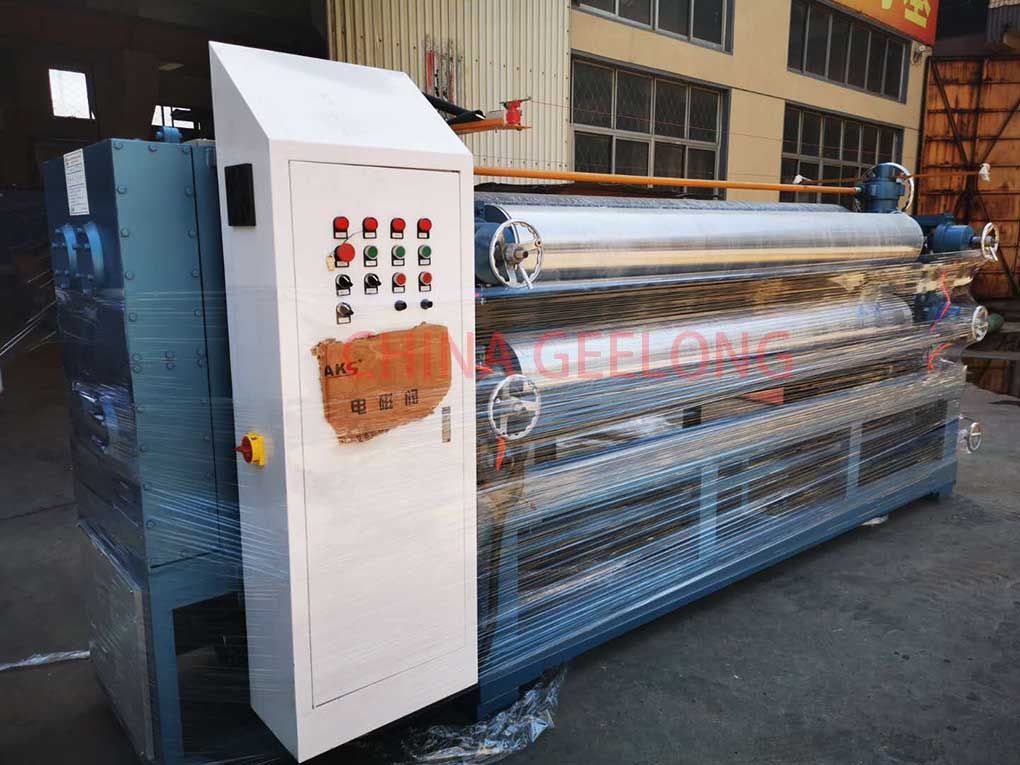

Glue spreader is used for spreading glue uniformly on veneers. Uniform gluing with the exact figure of adhesives improves the quality of plywood and saves a huge amount of expense in the long run. We have two type glue spreader machine, one is C type, one is Z type, China inner market, and vietnam market, buyers more like Z type, but like Indonesia client, India client, they are more liking C type. Our pneumatic glue spreader machine, to adjust the openning of the glue roller and steel roller, the speed more quick, and our machine is equipped with Delta inverter and emergency stop buttons, if any sudden things happened, the worker can stop the machine immediately, if you are interested in our glue spreader, welcome to inquiry geelong sales team.
2700mm(9ft) glue spreader machine specification:
This specification is based on double side coating machine.
machine model type:GLGS-2700D
Roller quantity:4pcs
Working speed:adjustable
Diameter of glue coating roller: 415mm
Length of glue coating roller: 2700mm
Diameter of glue squeeze roller: 270mm
Length of glue squeeze roller: 2700mm
Power of motor: 7.5kw
Max. Veneer thickness: 30mm
Max. Veneer width: 2700mm
Overall size: 4200x1250x1400mm
Machine's weight: 4000KGS
